SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD
SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD is the largest manufacturer of tin mill products in China with advanced technical equipments, It was established in 2001, located in Shanghai,China.
Verified Supplier

5 Years
Home > Tinplate Lid >

Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte

Product Categories
SHANGHAI QUANYE METAL PACKAGING MATERIALS CO.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte

Brand Name : QuanJiang

Model Number : 307# 83mm food can bottom

Certification : ISO9001

Place of Origin : China

MOQ : 2000 000 pcs

Price : Negotiated

Payment Terms : T/T or negotiated

Supply Ability : 9000 000 000pcs /Month

Delivery Time : Negotiated

Packaging Details : paper + carton, paper + wooden pallet. export standard packing .

Standard : ISO9001

Shape : Round

Material : tinplate / chrome plate

Package : paper + carton, paper + pallet.

Material type : Tinplate & TFS

Thickness : 0.17mm,0.18mm 0.19mm 0.20mm,0.21mm,0.22mm,0.23mm,0.24mm,0.25mm

inner Coating : aluminum paste, golden, clear lacqure, organosol or as requirements

outer coating : golden, clear lacqure, plain or customized

outer printing : customized design printing, empty

Features : rust resistance, acid resistance, alkali resistance, paintablity, rorrosion resistance etc

Contact Now




 307# 83mm   Tin can lid and bottom cover

20%CuSO4After soaking in 20% copper sulfate for 3 minutes, there was no obvious rust
antiacidAfter high temperature sterilization at 121℃ for 30 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blistering.
Resistance to sulfurAfter high temperature sterilization at 121℃ for 60 minutes, the inner coating film has no peeling, peeling, obvious corrosion and blackening.
inspection of appearanceNo obvious scratches, leakage coating, no oil, clean and smooth, without loss of round, no obvious deformation; Good straightness when stacked.

Other items parameters

DimensionD49.5mm/ 52mm/62mm/ 73mm /83mm/99mm/153 mm 70mm
Model

200# 202# 209# 300# 307# 401# 603#
65# aerosol cans tops and bottoms

MaterialTin Free Steel or Tinplate
ApplicationFor canned food packing, eg. Meat /Fruit /Vegetable ; aerosol
Inside coatingAluminum /White /Gold /Organosol Coating
Outside coatingGold /Clear Coating with Logo design printing/ Clear
Products show:
Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte
Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte
PORT: ShangHai
Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte

FOOD CAN BOTTOM ENDS-TIN CAN COMPONENTS
Food can bottom ends is usded both tin can lid and tin can bottoms; By different coating
inside,our can bottom ends could be used for different content, including meat can, tomato
paste can, fish can,fruit can, and dry food. The external side printing is customized, your logo
and brand could be shown on it. Our full specification could satisfy most of demand in metal
package, customized dimension and long term cooperation is welcome.

MODELCan diameterChuck DiameterInside coatingOutside coating
20050mm49.5mm

Gold Lacquer;
Clear Lacquer;
White Coating;
Aluminum Paste;
BPA free;

Gold Lacquer;
Clear Lacquer;
Printing;
Laminating;

20252mm51.8mm
21165mm64.9mm
21470mm69.9mm
30073mm72.16mm
30783mm82.37mm
40199mm97.73mm
603153mm153.4mm

Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte

  • Free samples provide.
  • 20 years experience technicial support.
  • Service always available .
  • 1st grade material for every production.
  • Original cost for your separated lids purchase.

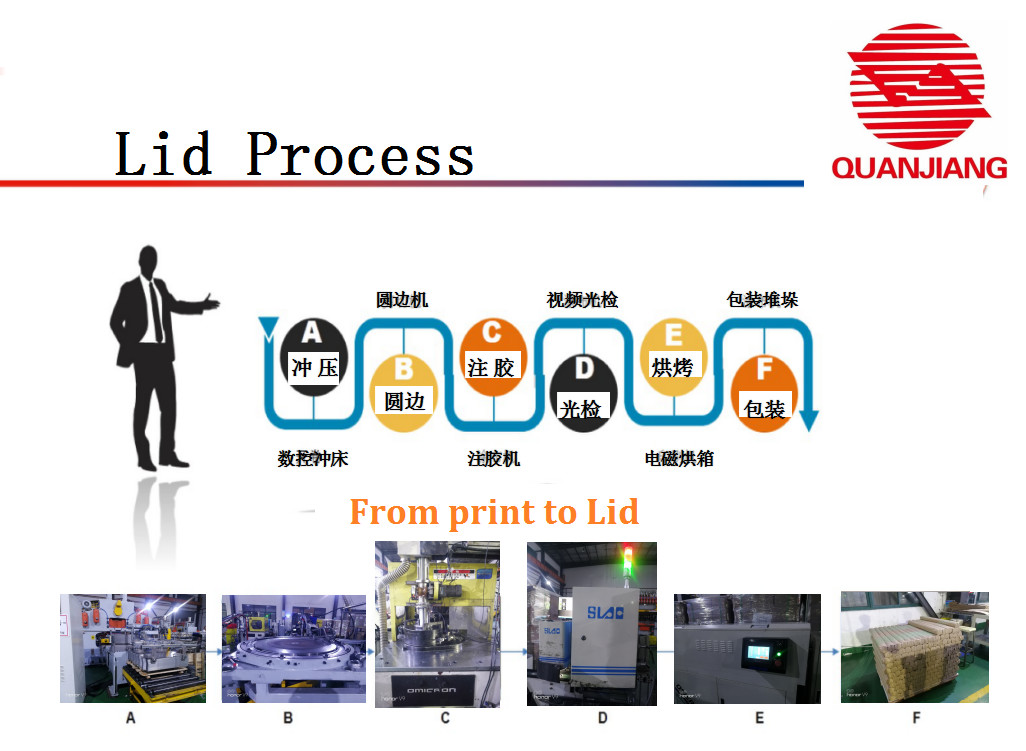

Production Process

Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte

Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte

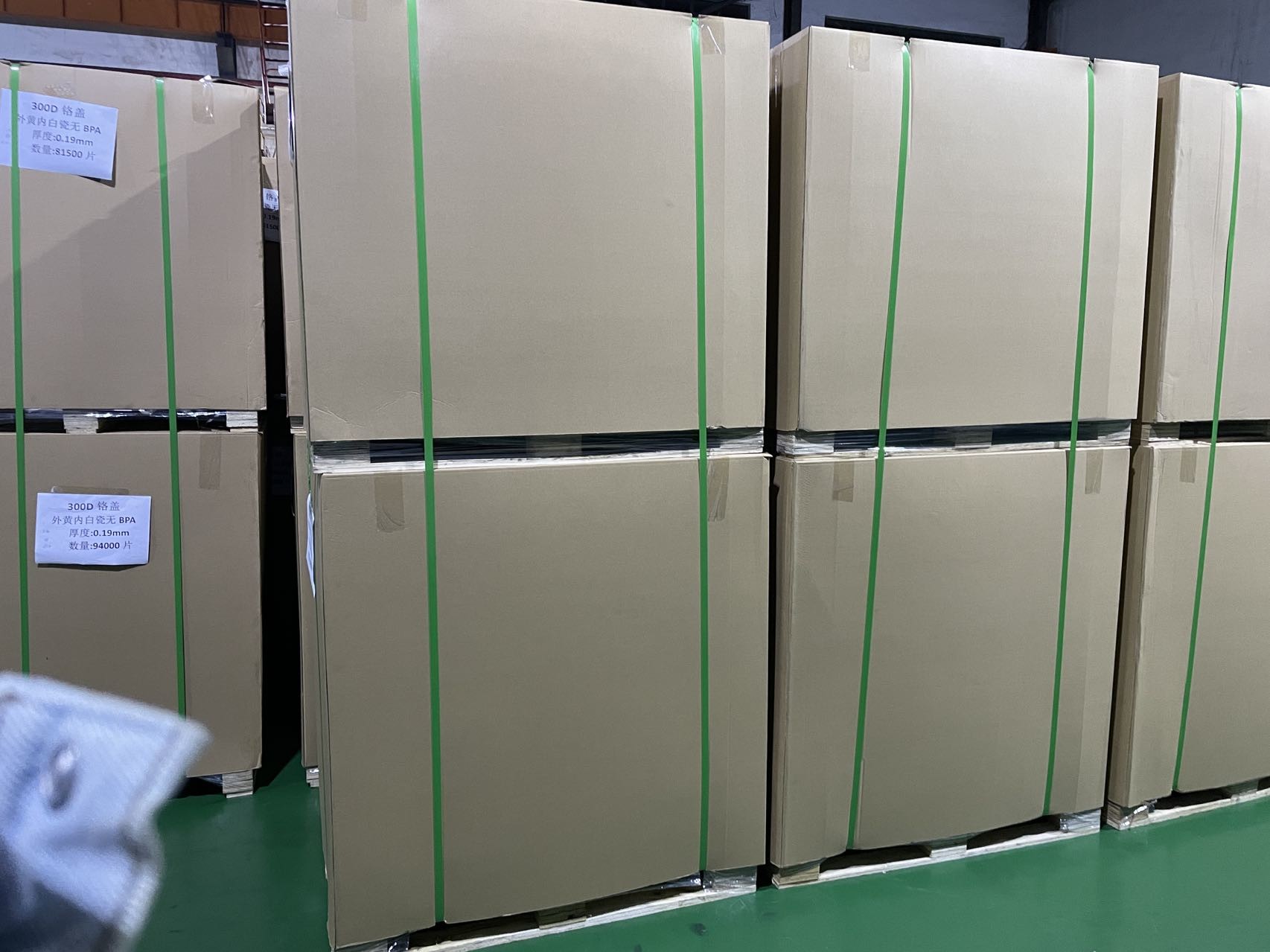

Packing & Delivery
Carton packing or Board packaging .Corrugated carton packaging, products vertically arrange and
separated by a cross board.The packing is firm and the can cover does not leak out of the box.

Sulfur Resistant 83mm 307 Metal Tinplate Lid For Cans Bottom food grade tinpalte
